CONNECTING YOU WITH QUALITY PRODUCTS & SERVICES

ARCTIC CONNECTION

SIZES AVAILABLE - WIDTH'S 20' - 30' & DEPTHS 20' - 40'
(SIZES INCREASE IN 2' INCREMENTS)


2 x 4 KILN DRIED STUDS @ 16'' O/C.
SINGLE PRESSURE TREATED BOTTOM PLATE.
DOUBLE TOP PLATES.
3-1/2'' SILL GASKET & GALV. BASE FLASHING.
7/16'' OSB WALL & ROOF SHEATHING.
2 x 10 OVERHEAD DOOR HEADER. (GABLE END ONLY.)
2 x 6 WINDOW & WALK-IN DOOR HEADER.
RIDGE BLOCKING MATERIAL.
2 x 6 SUB-FASCIA.
ALUMINUM FASCIA.
ALUMINUM SOFFIT.
30 YEAR 3-TAB FIBERGLASS SHINGLES & ROOF VENTS.
ENGINEERED PREFAB TRUSSES DESIGNED @ 24'' O/C.
MATERIAL FOR 12'' OVERHANG ALL AROUND.
PLY-CLIPS & SAFETY TIE OFFS.
36'' x 30'' DUAL PANE FIXED WINDOW (PICTURE STYLE) COMPLETE W. WHITE 2-1/8'' PVC FRAME.
32'' FIBERGLASS INSULATED SIX-PANEL WALK-IN DOOR COMPLETE WITH ALUMINUM WRAPPED SILL, 4-1/2'' JAMB, LOCK SET & DEADBOLT.
1 - ONLY 16' x 7' INSULATED STEEL SECTIONAL OVERHEAD DOOR WITH EMBOSSES PANELS.
NAIL PACKAGE.
OPTIONS & CHANGES (NO PROBLEM).AVAILABLE OPTIONS:


VINYL SIDING
GARAGE DOOR OPENER
STUCCO-WIRE & PAPER
DRYWALL & INSULATION PACKAGE
36'' x 30'' PVC DUAL PANE SLIDER WINDOW
36'' FIBERGLASS INSULATED SIX-PANEL WALK-IN DOOR
2 x 6 STUD FRAMING INCLUDES SLIDER WINDOW
10ft WALLS C/W 8ft HIGH GARAGE DOOR
DRAFTING SERVICES FOR CUSTOM PLANS
392 TOTAL GARAGE PACKAGES AVAILABLE.


GARAGE PACKAGES

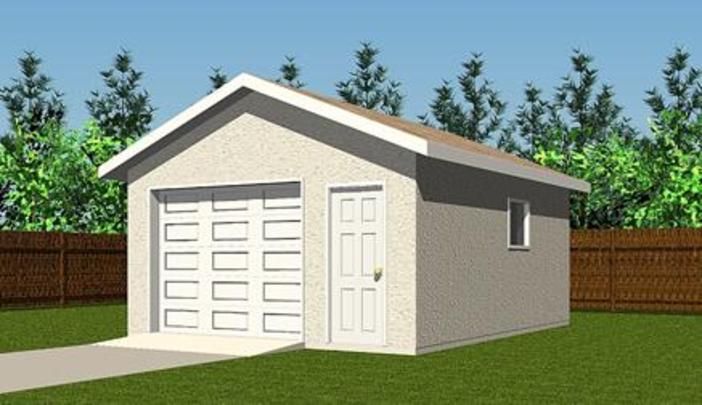

STANDARD SINGLE CAR GARAGE PACKAGE

SIZES AVAILABLE - WIDTH'S 12' - 18' & DEPTH'S 20' - 40'
(SIZE INCREASE IN 2' INCREMENTS)


2 x 4 KILN DRIED STUDS @ 16'' O/C.
SINGLE PRESSURE TREATED BOTTOM PLATE.
DOUBLE TOP PLATES.
3-1/2'' SILL GASKET & GALV. BASE FLASHING.
7/16'' OSB WALL & ROOF SHEATHING.
2 x 10 OVERHEAD DOOR HEADER. (GABLE END ONLY.)
2 x 6 WINDOW & WALK-IN DOOR HEADER.
RIDGE BLOCKING MATERIAL.
2 x 6 SUB-FASCIA.
ALUMINUM FASCIA.
ALUMINUM SOFFIT.
30 YEAR 3-TAB FIBERGLASS SHINGLES & ROOF VENTS.
ENGINEERED PREFAB TRUSSES DESIGNED @ 24'' O/C.
MATERIAL FOR 12'' OVERHANG ALL AROUND.
PLY-CLIPS & SAFETY TIE OFFS.
36'' x 30'' DUAL PANE FIXED WINDOW (PICTURE STYLE) COMPLETE W. WHITE 2-1/8'' PVC FRAME.
32'' FIBERGLASS INSULATED SIX-PANEL WALK-IN DOOR COMPLETE WITH ALUMINUM WRAPPED SILL, 4-1/2'' JAMB, LOCK SET & DEADBOLT.
1 -ONLY 9' x 7' INSULATED STEEL SECTIONAL OVERHEAD DOOR WITH EMBOSSED PANELS.
NAIL PACKAGE
OPTIONS & CHANGES (NO PROBLEM).AVAILABLE OPTIONS:


VINYL SIDING
GARAGE DOOR OPENER
STUCCO-WIRE & PAPER
DRYWALL & INSULATION PACKAGE
36'' x 30'' PVC DUAL PANE SLIDER WINDOW
36'' FIBERGLASS INSULATED SIX-PANEL WALK-IN DOOR
2 x 6 STUD FRAMING INCLUDES SLIDER WINDOW
10ft WALLS C/W 8ft HIGH GARAGE DOOR
DRAFTING SERVICES FOR CUSTOM PLANS
392 TOTAL GARAGE PACKAGES AVAILABLE.

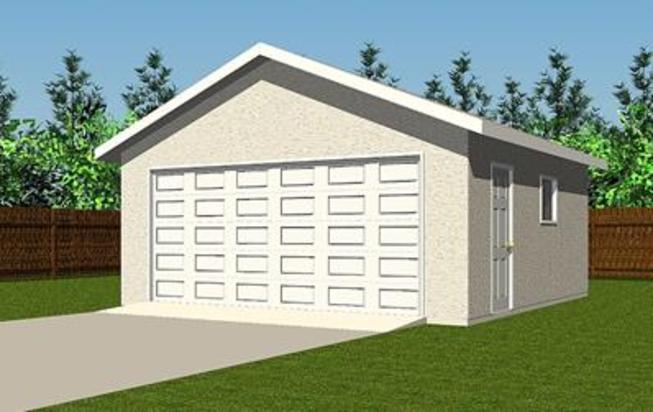

STANDARD DOUBLE CAR GARAGE PACKAGE
